UHT PLANT, INCLUDING HOMOGENIZER

UHT PLANT, INCLUDING HOMOGENIZER

SOLD

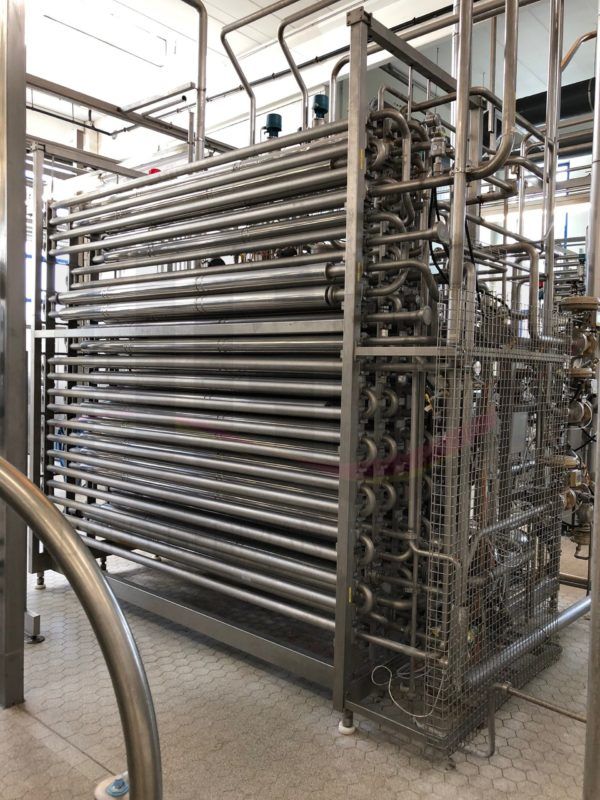

We are offering a UHT plant with homogenizer in good used condition.



This is a UHT plant previously used for the sterilization of high viscosity products (pudding).
Should you wish to produce low viscosity products, for example UHT milk, this plant is also suitable by changing the program settings.
Output can also be increased to approximately 5500 to 6500 l/h, depending on product specifications.

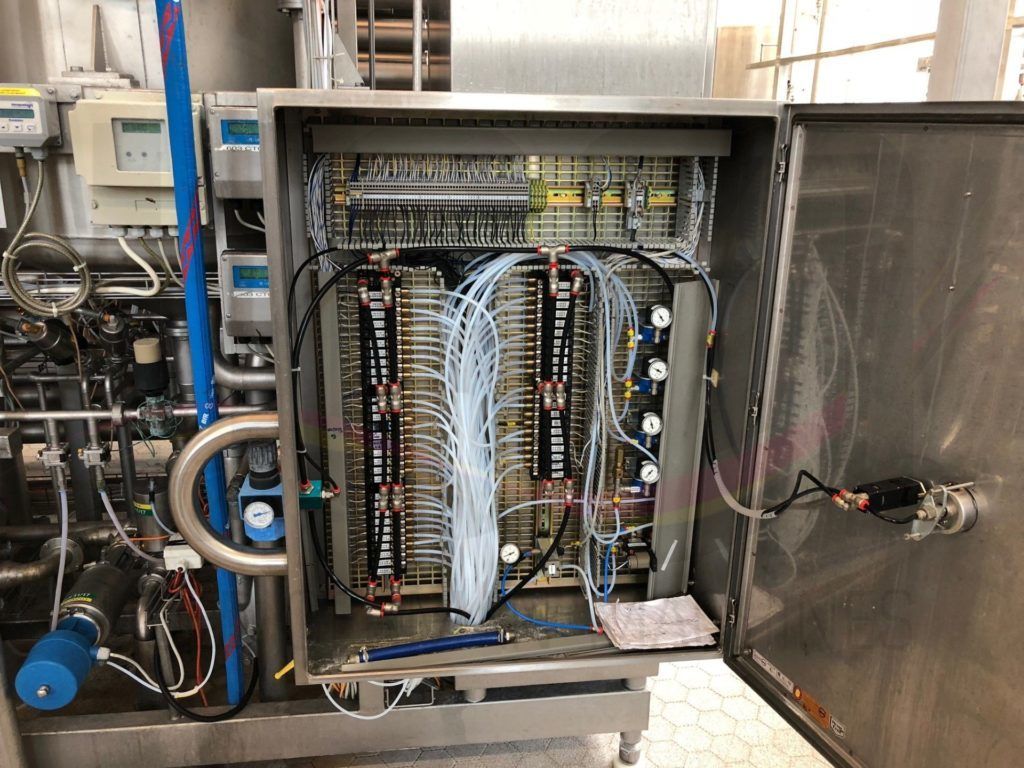

This equipment will be delivered with a new electrical cabinet and a current model Siemens PLC system.

SKU: 99922383 Category:

Additional information

UHT

Make: GEA Finnah GmbH
Model: 6500/045
Capacity: 3000 – 6500 l/h
Area of use: UHT pudding & desserts, UHT milk
Year of make: 2000
PLC make: Siemens
Electric connection: 230/400V, 50Hz
Electric energy consumption: 22 kW
Holding tube range: 4 sec @ 4500 l/h
Min/Max temperature operating range: 110-140°C
Viscosity range: for end product @ 20°C (for example pudding / desserts) 300-500 mPas. Less Viscous
products can also be processed.

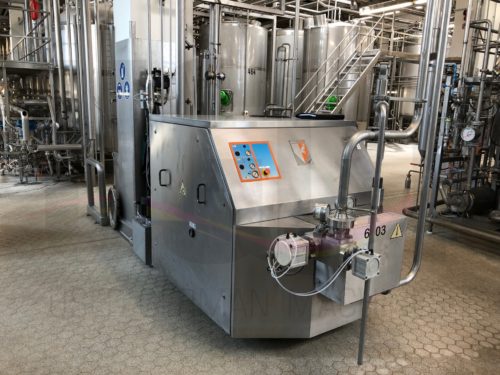

Homogenizer

Make: GEA Niro Soavi
Model: NS3037H
Min/Max flow: 2400 to 8000 l/h
Max. viscosity: <200 cP
Stages: 2 stages
Pressure min/max: 50-150 baR
Speed range: 2000 – 4500 l/h

Description

Fully automatic, PLC-controlled UHT plant for UHT milk or viscous products cream and pudding, technology is indirect heating system and regenerative exchange
loop, including CIP connection and dearator.
